Feature

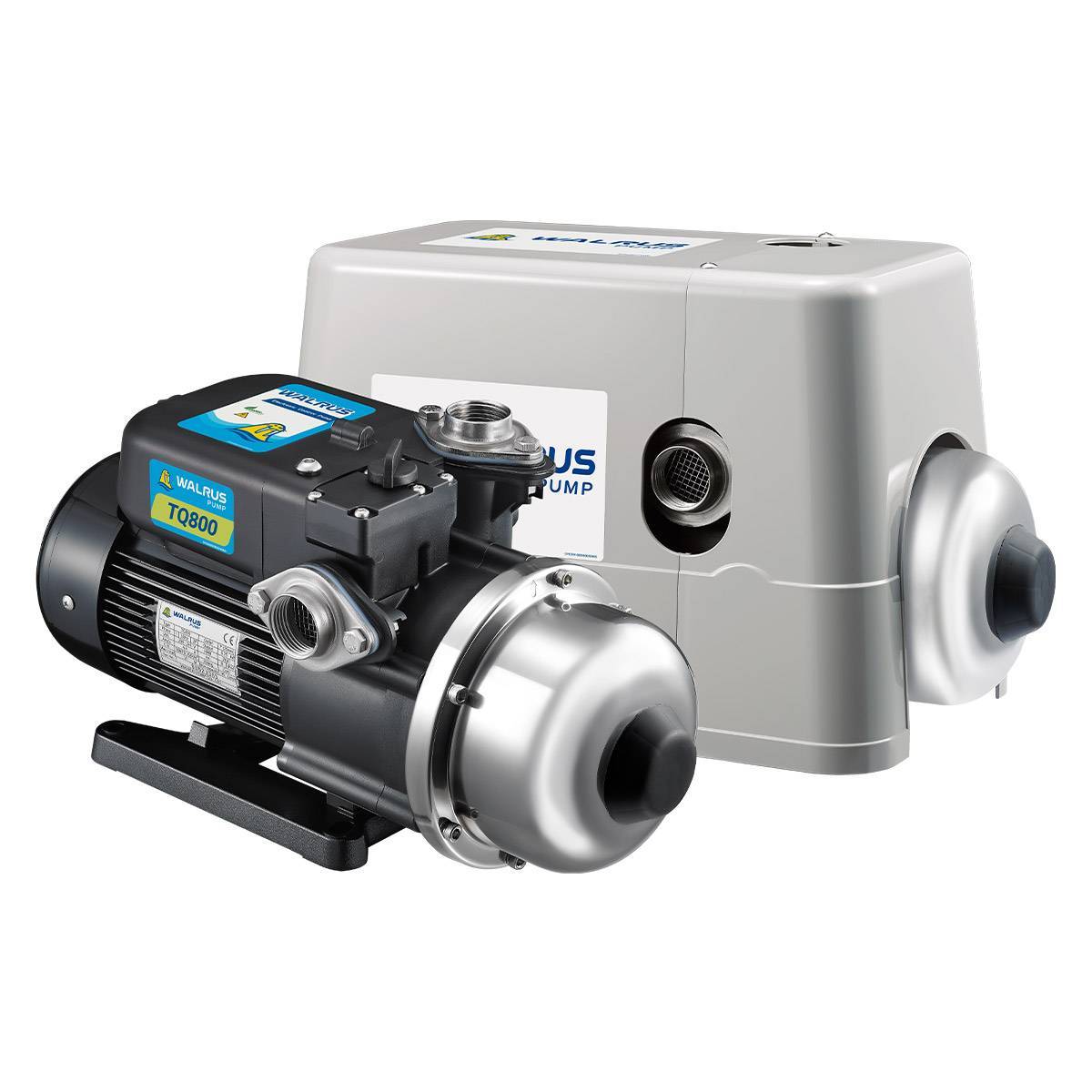

1. The TQ is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

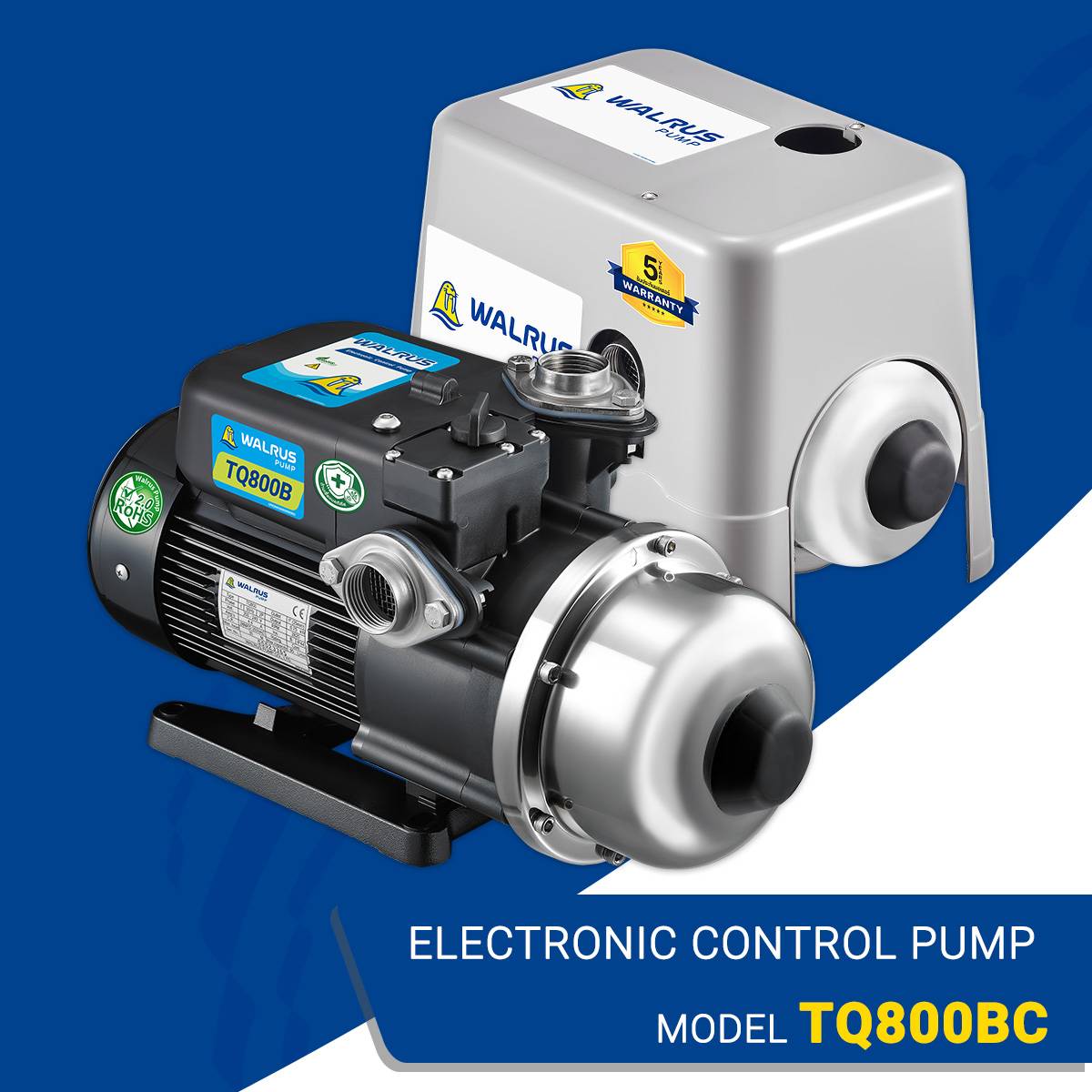

2. TQ800BC has a cover to protect from sunlight, water spray, and insects.
3. The TQ is constructed from top quality corrosion-resistant materials.
4. The motor has a built-in thermal overload to protect against high operating temperatures and over current.
5. Pump has built-in dry-run shut-off with automatic reset function.
6. The TQ has an anti-cycle feature which the pump from continuous starting and stops when you have a dripping tap or minor leak in the system.
7. The pumps can lift water up to 7.6 m. with a foot valve and pump suction piping filled with water.

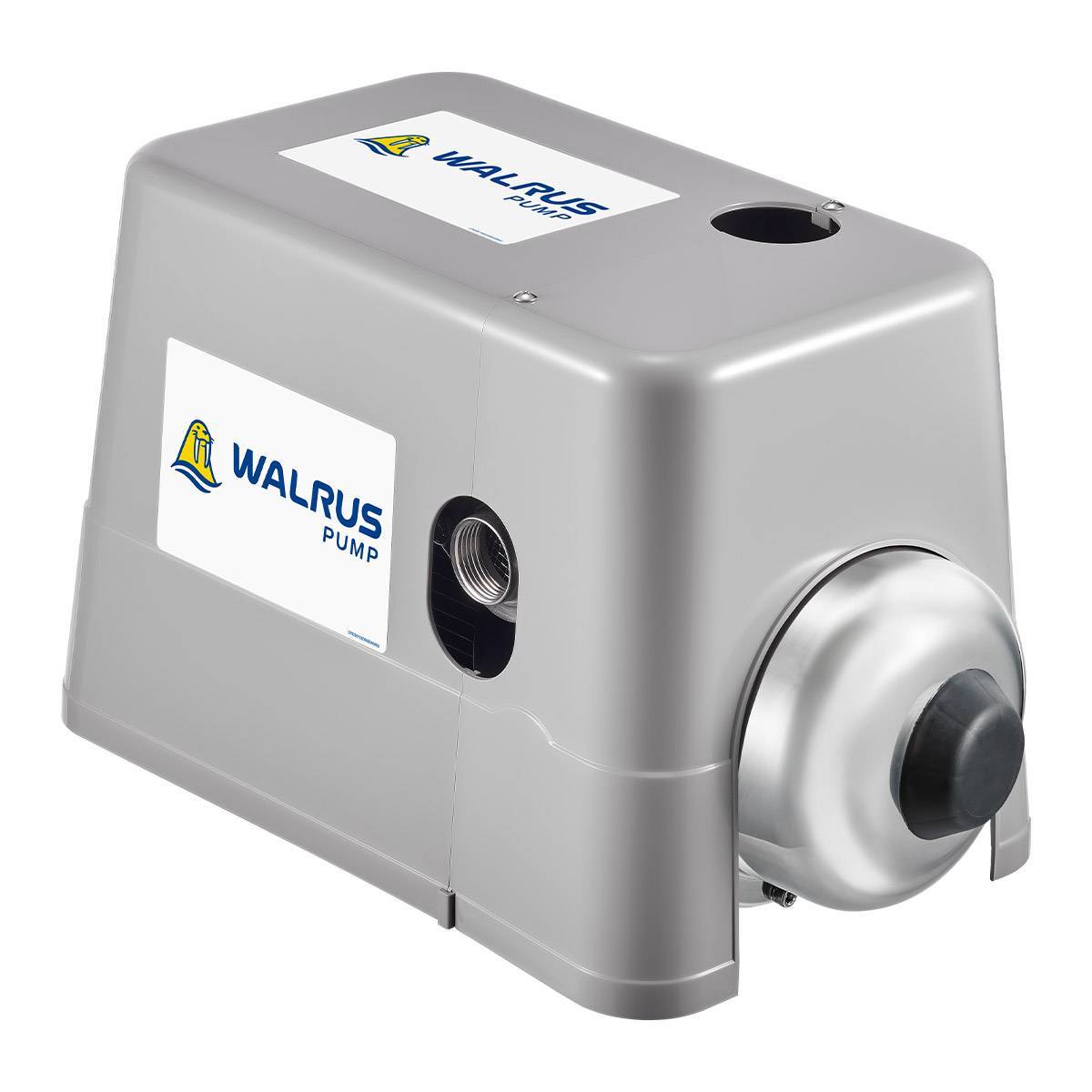

8. There is a cover to prevent sunlight, water, insects and rodents from damaging the wiring harness and various equipment.
9. Maximum liquid temperature is +4°C ~ +40°C
Application
- The TQ series pumps are designed for water supply and pressure boosting in residential, commercial, and light industrial
- applications. where low or inadequate water pressure exists.
- it is suitable for boosting pressure from underground or surface water supplied.
| Weight | 12 kg |
|---|---|
| Dimensions | 45.8 × 22.9 × 28 cm |
| DN | 1 Inch |
| Q.Max | 95 Litre/Min. |
| Head | 35 M. |
| Depth | Up to 8 M. |
| Power | 750 Watt |
| Temperature | 4 ~ + 40 °C |
